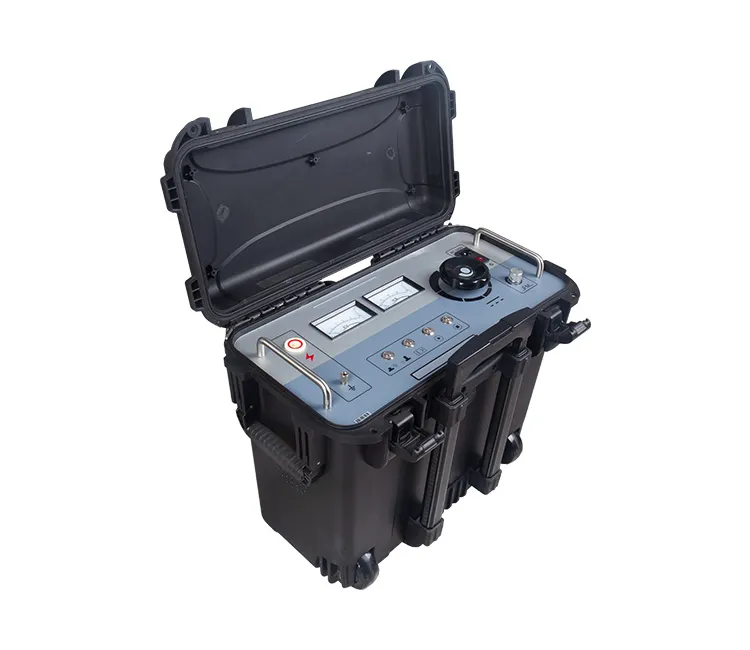

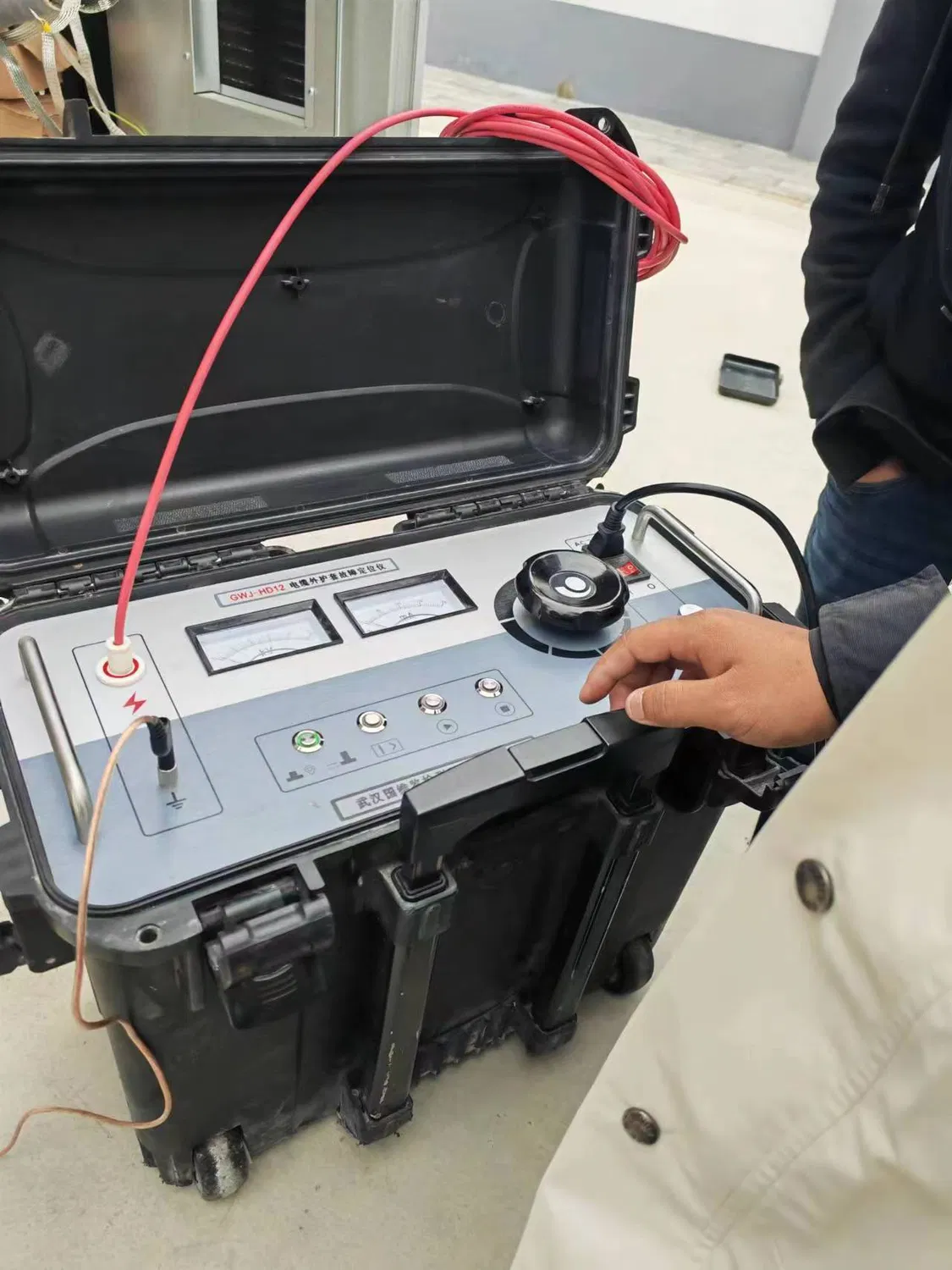

Skip to content The XHHG523 is a precision-engineered cable outer sheath fault locator, ideal for identifying ground faults in unarmored wires and single-core cables. Utilizing step voltage and clamp current methods, it provides accurate pinpointing of sheath damage and fault zones in underground cable systems. Built with high adjustability and safety features, it offers seamless operation for utility and maintenance professionals.
Key Features:
Adjustable output voltage (0–10kV, square wave)
Flexible frequency tuning (0.4Hz – 1Hz)
Zero blind zones in testing range
Overcurrent protection, fixed-point capability, and zero protection
Adjustable receiver sensitivity for enhanced precision
Withstand voltage single-switch function
Technical Specs:
Input Voltage: 220V ±10%, 50Hz ±15%
Output Current: Max 200mA
Output Capacity: 2kVA
Test Mode: Step voltage and clamp current
Application: Underground cable sheath fault locating
Ideal For:
Utility companies, electrical maintenance crews, and field technicians needing reliable, high-accuracy cable sheath fault diagnostics.
